01
Nuts Products(green peas, cashewnut, peanut) Frying System
Application
This line is specially developed for shallow fried and deep fried of nuts, peanuts.

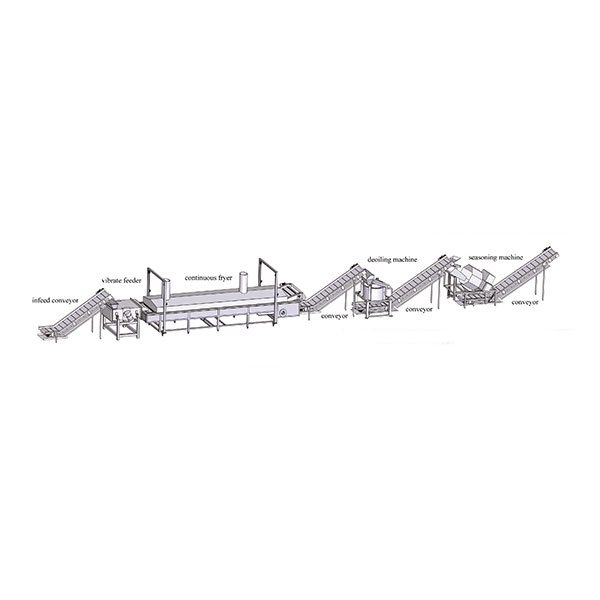

Technological process:
infeed conveyor ---fryer---de-oiling machine---de-oiling (filter)
conveyor---flavoring machine---flavoring conveyor(powder feeder)
Infeed conveyor: Convey the products into the fryer evenly.

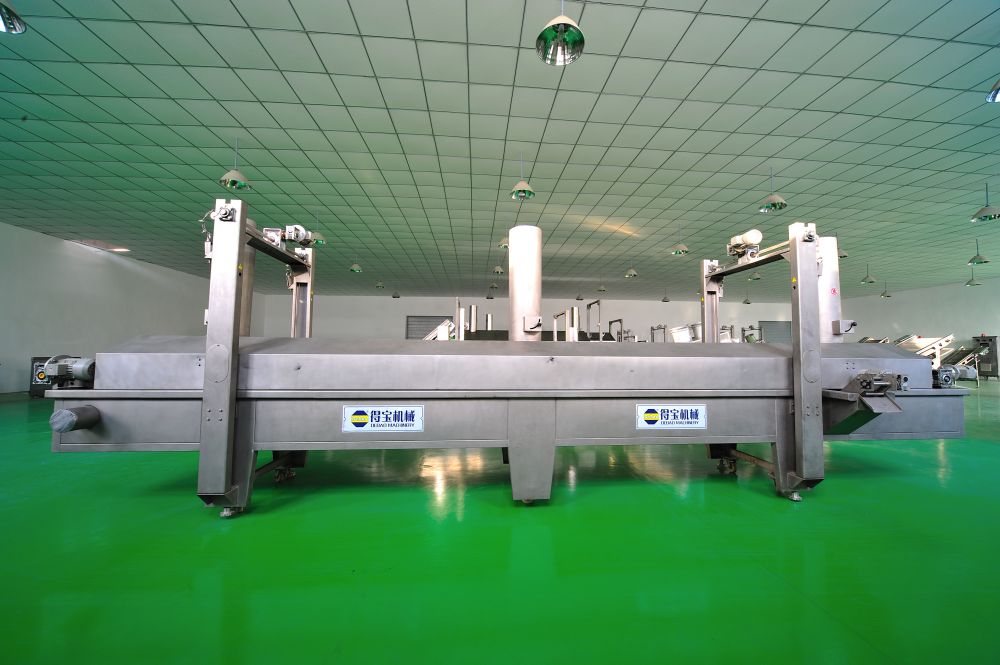

Fryer: Usually nuts will fall down to the bottom of fryer while frying. So we using single net belt with high scraper to keep the products go ahead. In this way we can get the best quality products.
Oil filter: This is our patent products using for filtering the sediment while frying. Non-cost of filter paper and filter aid agent .It can continuous working for a long time. Equipment with self-cleaning system no need for human doing, save labor costs.
De-oiling conveyor: Convey the fried products into the de-oiling machine.
De-oiling machine: Centrifugal de-oiling and continuous working, the de-oiling time can be adjusted, frequency conversion control speed, frequency conversion trig.
De-oiling conveyor: Convey the finished products to the flavoring machine.
Flavoring machine: Continuous flavoring machine. We can adjust the tube speed and powder feeding speed to get the best mix effect.
Powder feeder: With electromagnetic vibration, the speed can be adjust and more evenly.
Flavoring machine: Convey the finished products to the next machine
2.The conveying system can lift out of the fryer, convenient for washing.
The frying time and oil temperature can be adjusted.Temperature range: 0-240 Degree Celsius.
4. The machine will cut off electric and gas automatically and give an alarm when over temperature.
5.Leakage protection devices, provide safety working condition.
6. Equip with side dregs-out device, it can take the dregs out of fryer automatically while fryer working.
7.Equip with bottom dregs scrapping belt, remove the dregs on fryer bottom.
8.The fryer preset interface to connect oil smoke drain pipeline.
9.Automatic oil level control, it can filling oil into fryer from oil tank automatically while oil is less.
10.All the electrical parts are Siemens or Omron or Schneider or other famous brand.
Detail chart
